enogy One CORE with CAN

All-In-One Energy Monitoring (Wi-Fi Version)**

Meet the future of off-grid energy management. The Renogy One CORE with CAN is the smart command centre that brings your entire power system together—solar, batteries, chargers, inverters, and more—into one sleek, easy-to-use hub.

Designed for caravans, 4WD rigs, tiny homes, boats, and off-grid builds, the Renogy One CORE gives you total visibility and control of your energy system, no matter where you are. With built-in Wi-Fi connectivity, you can monitor your power levels, battery health, solar input, and system performance from anywhere through the Renogy app. That means real-time insights, instant alerts, and total peace of mind—even when you’re miles away from your setup.

The integrated CAN communication ensures ultra-reliable, lightning-fast data transfer with compatible Renogy devices, giving you accurate, up-to-the-second information. No more guessing. No more juggling multiple displays. Just clean, centralised energy intelligence.

The Renogy One CORE doesn’t just monitor—
it elevates your entire off-grid experience.
From energy usage reports and smart automation to device integration and system protection, it turns a regular power system into a smart ecosystem.

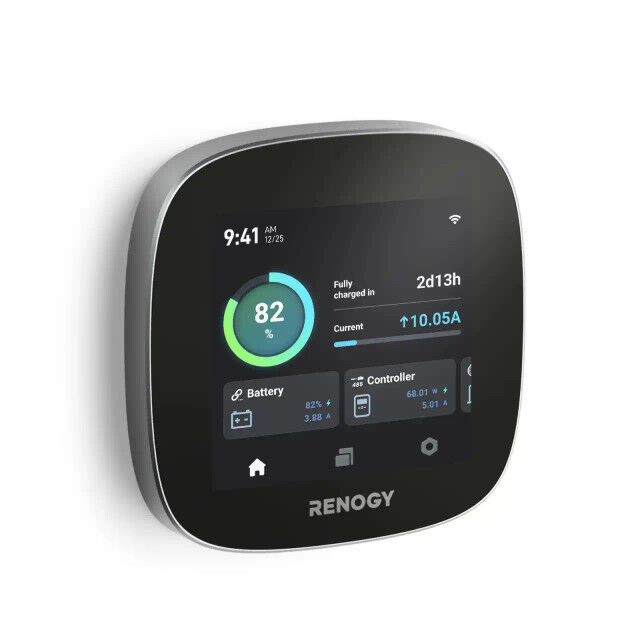

And with its compact, modern touchscreen design, it looks right at home in any caravan, camper, van build, or off-grid living space. Installation is straightforward, and its intuitive interface ensures anyone can understand their energy system at a glance.

With the Renogy One CORE, you’re not just tracking your power—
you’re taking charge of it. Smarter. Faster. From anywhere.

(RSHGWSN-W02W-G3-AU)

Model Name             RSHGWSN-W02W-G1
Operating Voltage     USB Type-C: 5 VDC
Power Port:               8 to 60 VDC

Power Consumption at 12 V     Operating, Wi-Fi On, 100% illumination: 3.2 W
                                                  Operating, Wi-Fi On, 50% illumination:  2.4 W
                                                  Operating, Wi-Fi On, 0% illumination:  1.9 W
                                                  Screen off, Wi-Fi Off, logs still active: 1.5 W

Power Consumption at 5 V     Operating, Wi-Fi On, 100% illumination: 2.9 W
                                                Operating, Wi-Fi On, 50% illumination: 2.3 W
                                                Operating, Wi-Fi On, 0% illumination: 1.7 W
                                                Screen off, Wi-Fi Off, logs still active: 1.3 W
Communication                       Wi-Fi (IEEE 802.11b/g/n 2.4 GHz)
                                                Bluetooth LE and Bluetooth Mesh
                                                Zigbee 3.0 (IEEE 802.15.4)
                                                RS-485

Touch Screen                          4 in (480 x 480p)
Leveling Range and Accuracy    ±89°, 0.1°
Operating Temperature               -4℉ to 158℉(-20℃ to 70℃)
Operating Humidity                     0% to 95% RH
Operating Altitude                       Less than 16,404 ft (5000m)
Installation                                  Flush mount or place on a table

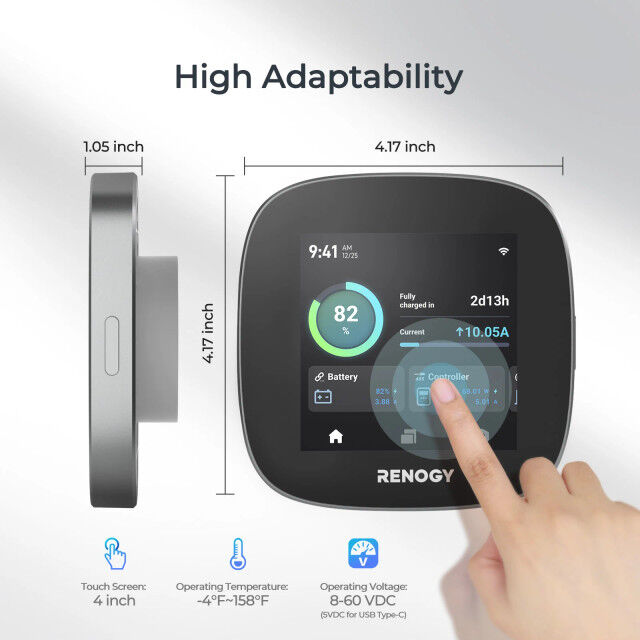

Dimensions                                4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
Weight                                        0.28 lb (128g)
Certifications                              FCC, CE, TSCA, and RoHS
Warranty                                    2 years


SKU RSHGWSN-W02W-G3-AU
Brand Renogy
Shipping Weight 1.0000kg
Shipping Width 0.106m
Shipping Height 0.026m
Shipping Length 106.000m
Shipping Cubic 0.292136000m3
