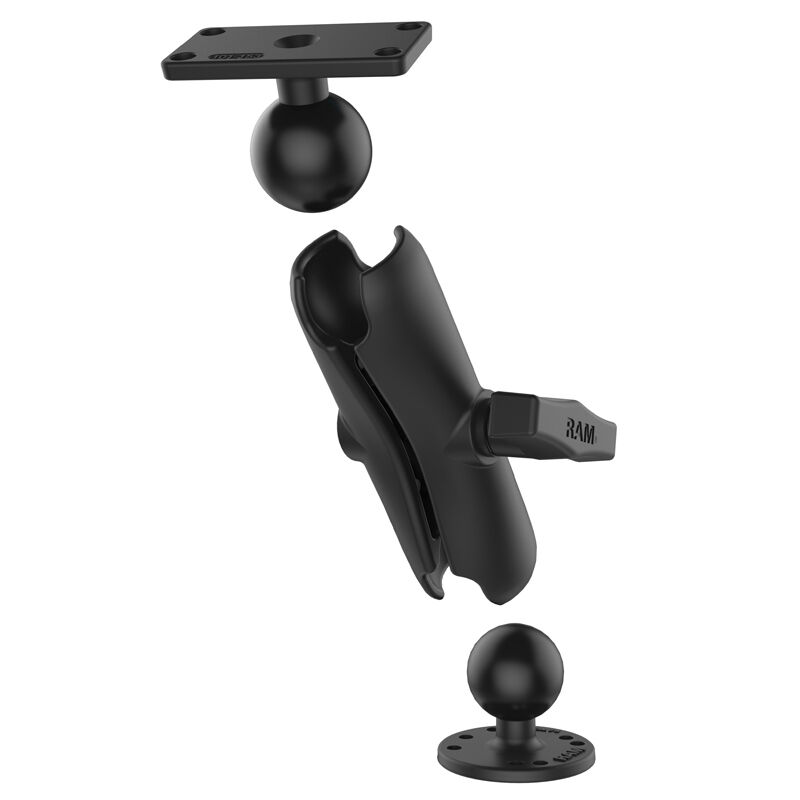

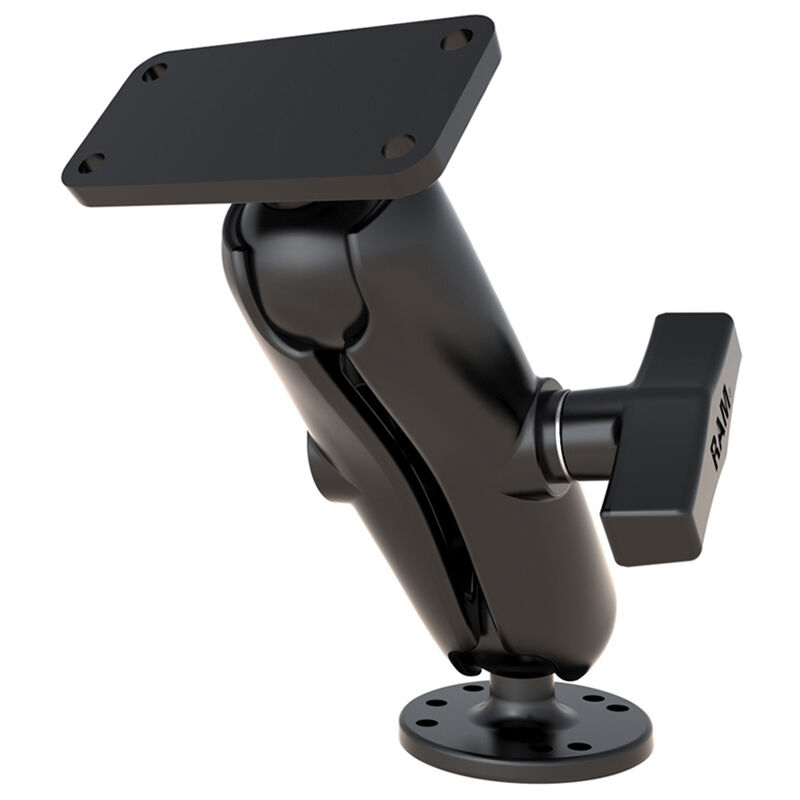

The RAM-202-153-202U consists of a round 2.5" diameter round base (Universal AMPs Hole Pattern), double socket arm and 1.5" x 3" rectangular base. The rectangular base contains four holes with a center to center pattern of 1" x 2.5". For most applications, mount will support up to ten pounds.

Compatible Devices:

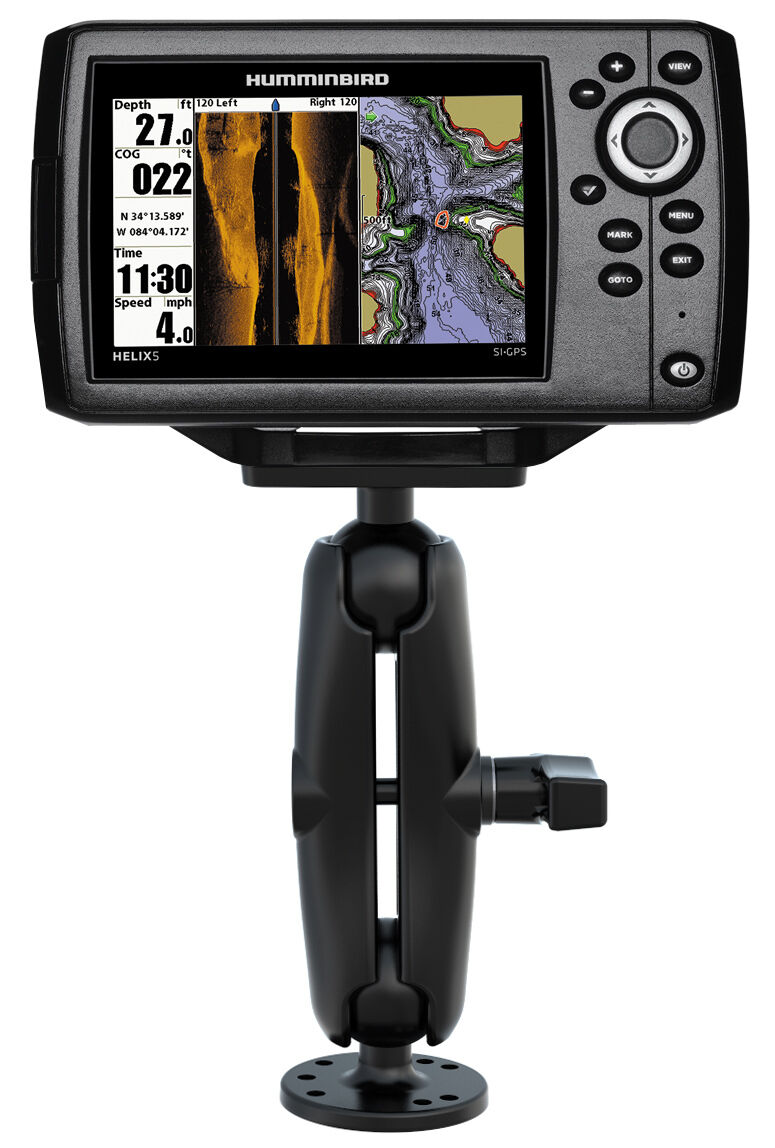

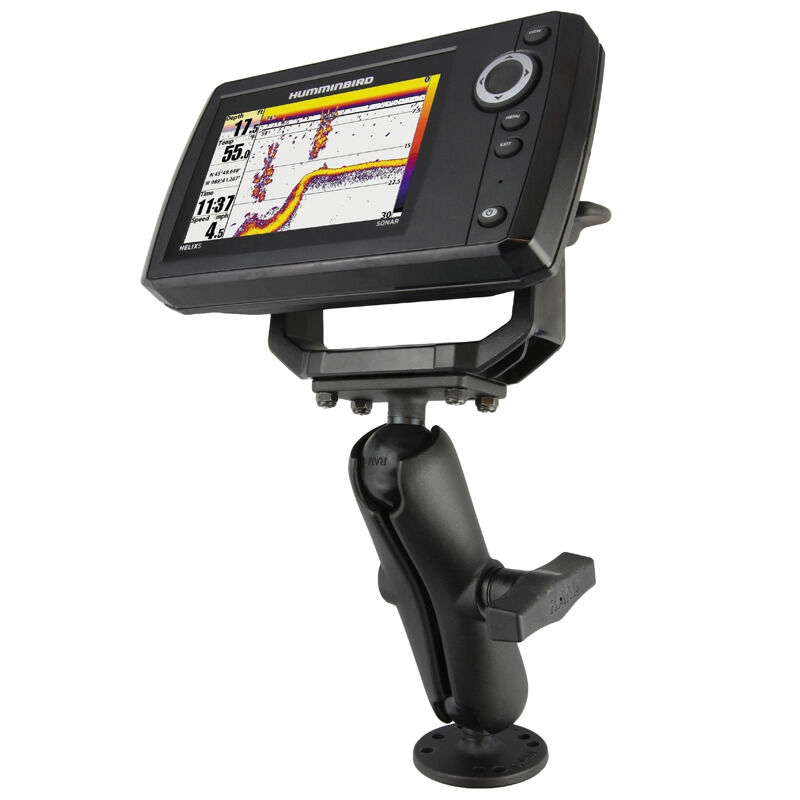

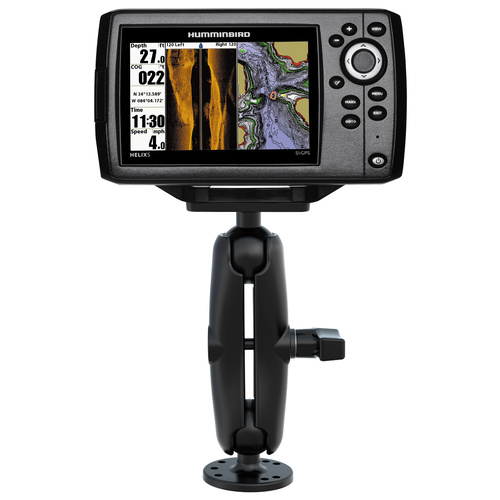

Humminbird Helix 5

Specifications:

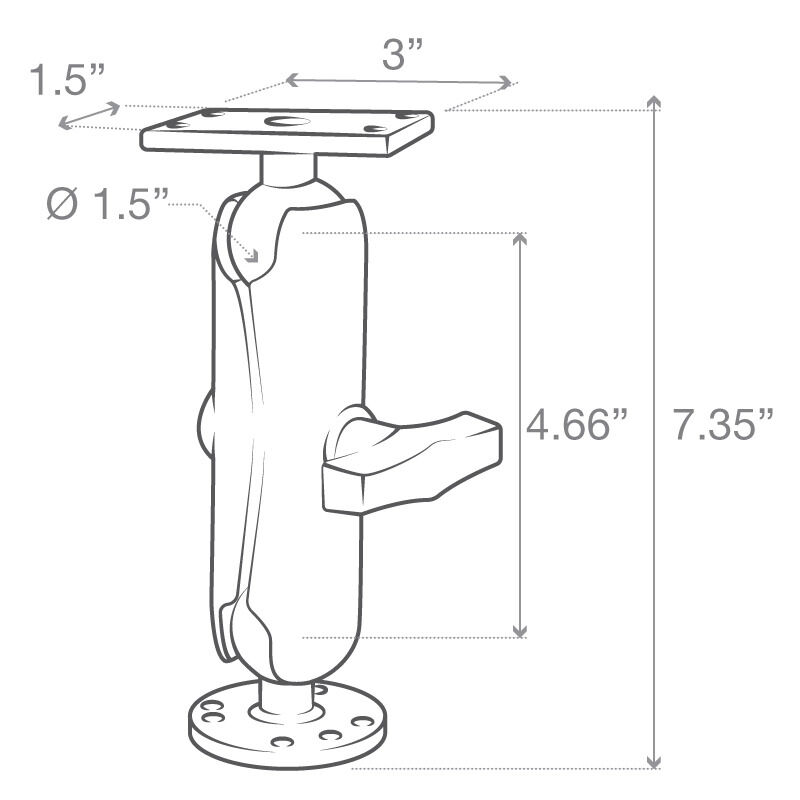

  • Center to Center Hole Pattern: 1" x 2.5"
  • Weight Capacity: 10 lbs.
  • Overall Height: 7.35"
  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 1.5" Rubber Ball Size

Note: The "U" in the part number reflects product packaged in poly bag. Hardware for mounting to device not included with purchase.

(RAM-202-153-202U)

SKU RAM-202-153-202U
Barcode # 793442946912
Brand RAM Mounts
Shipping Weight 0.5220kg
