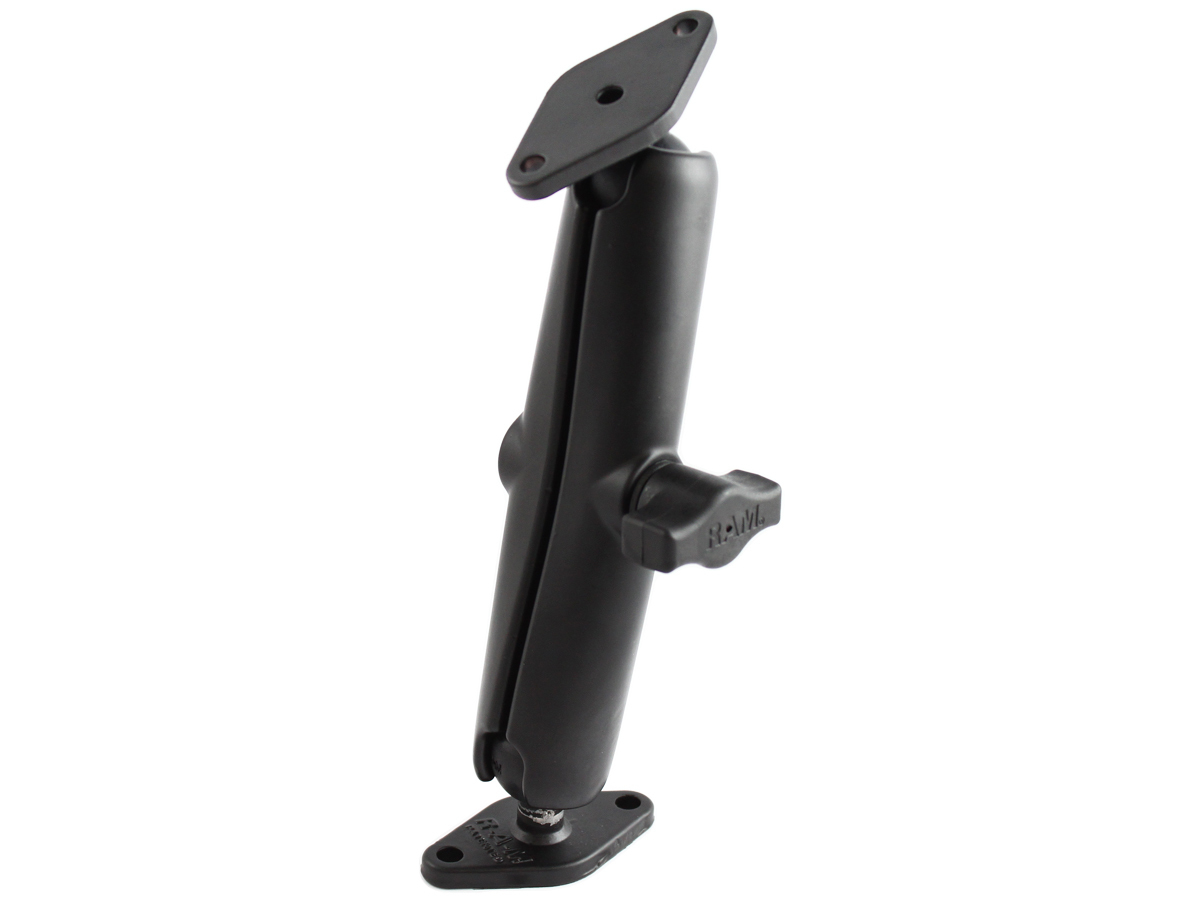

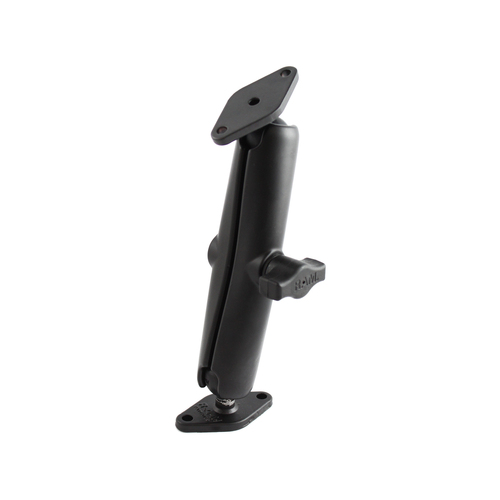

The RAM-B-102U-C consists of a long double socket arm and two diamond bases. The diamond bases measure 2.43" x 1.31" diamond base and contain two holes 1.912" from centre to centre, positioned at both ends of the diamond base. The hole pattern found on the diamond bases will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

Specifications:

  • Overall Height: 7.3125"
  • Material: Powder Coated Marine Grade Aluminium
  • Ball Size: 1" Rubber "B" Ball Size

Note: The "U" in the part number reflects product packaged in poly bag.

(RAM-B-102U-C)

SKU RAM-B-102U-C
Barcode # 793442916298
Brand RAM Mounts
Shipping Weight 0.3040kg
