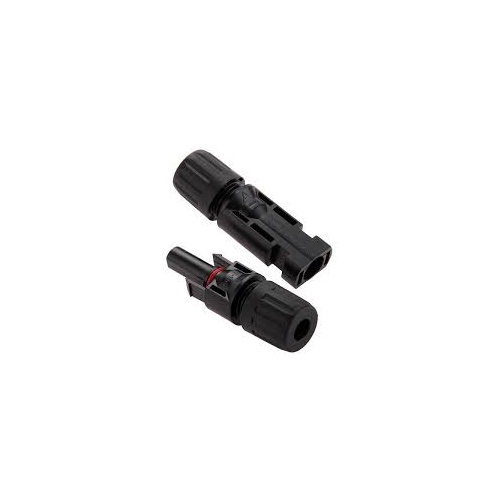

Solar PV Connector
Male - Female



These connector have been designed for use with photovoltaic solar panels. The IP67 rating provides a very reliable connector which is water-proof and dust-proof.

Pins included with Male and Female connectors.

(SD-SGMC04)

Specification Description

Rated current: 16A (2.5mm2, AWG14), 30A(4mm2, AWG12), 52A (6mm2, AWG10)
Standard rated current: 30A
Rated voltage: DC1000V
Contact resistance: <2mΩ
Insulation resistance: > 500MΩ
Cable diameter scope: Φ5mm ~Φ 7mm
Operating temperature: -40 ℃~ + 105 ℃
Water-proof grade:  IP67
safey class: II
Insulation material:  PPO
Contact material:  Copper sliver plated
Suitable cable:  2.5mm2/4mm2/6mm2(AWG14/12/10)
Locking system:  Snap In
Method of connecting wire: Pressure welding
Weight: APPROX 0.025Kg/pc
SKU SD-SGMC04
Brand Road N Beyond
Unit Of Measure 1
