Monitor your deep cycle battery via your smartphone

Batterycheck 100

With BatteryCheck100, you can really understand your recreational vehicle’s secondary battery when travelling. We all know that a simple measurement of voltage is not enough to really comprehend fully what is happening with your deep cycle battery. Whether you are using your 12V power or charging the battery, you want to be 100% sure your battery is in good health and has enough power for your next adventure.

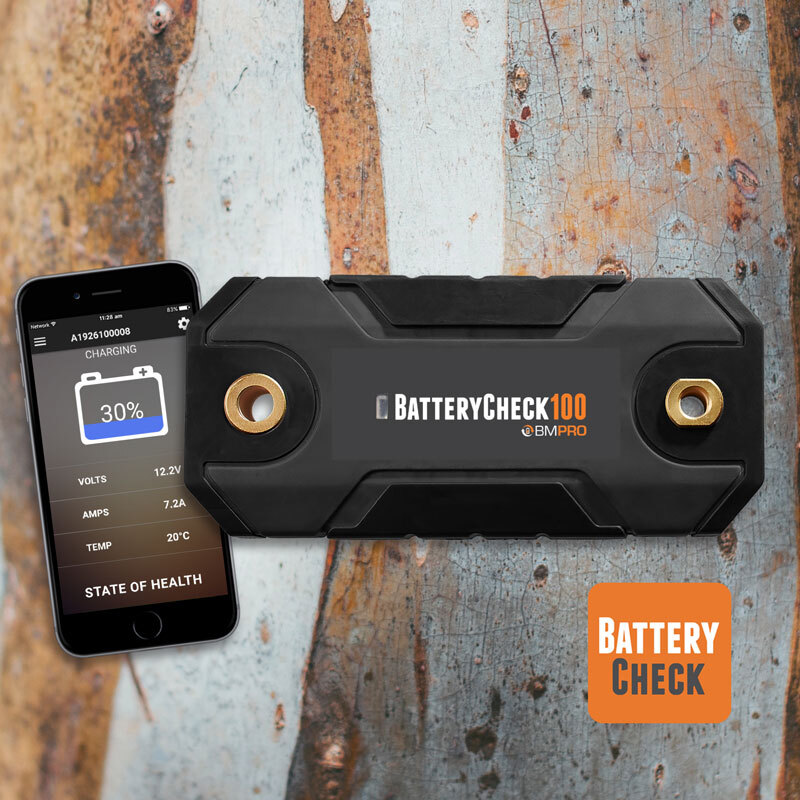

BMPRO’s BatteryCheck100 is a 12V battery monitor with the latest Bluetooth LE technology built in, so you can monitor your battery via smartphone with the app. The new and improved app is highly intuitive, clear and easy to use. Download BatteryCheck100+PRO app from google play or app store and set the monitoring in minutes.

BatteryCheck100 is compatible with  a range of standard 12V deep cycle batteries. It provides real time battery management data that allows users to effectively monitor remaining battery energy via a simple to use app.

Specially designed for recreational vehicles’ deep cycle batteries, BatteryCheck100 allows monitoring up to 100A maximum charge or discharge. BatteryCheck100 is not suitable with engine cranking applications of any type and is not intended for under vehicle bonnet use.

BatteryCheck PRO

With BatteryCheckPRO, you can really understand your recreational vehicle’s 12V battery. Choose BatteryCheckPRO if you rely on your secondary battery to operate microwave, inverter, hair dryer, or have other high current requirements (over 100A). BatteryCheckPRO is compatible both with lead acid and lithium (LiFePO4) types of deep cycle batteries.

We all know that a simple measurement of voltage is not enough to really comprehend fully what is happening with your deep cycle battery. Whether you are using your 12V power or charging the battery, you want to be confident your battery is in good health and has enough power for your next adventure.

BatteryCheckPRO is a wireless battery monitor with the latest Bluetooth LE technology built in, so you can monitor your battery in real time via smartphone with the app. The new and improved app is highly intuitive, clear and easy to use. It allows to choose the type and capacity of the battery and also to change battery reserve, which gives even more control over your vehicle’s power usage.

Specially designed for recreational vehicles’ secondary batteries, BatteryCheckPRO allows monitoring up to 300A maximum charge or discharge. BatteryCheckPRO is not suitable with engine cranking applications of any type and is not intended for under vehicle bonnet use. However, you can use it in a Ute tray application in a sealed battery box or in a marine application if the battery area is free from water and salt.

Battery parameters monitored are:

  • Voltage and Temperature
  • Charge/Discharge Current
  • State of Charge (SoC)
  • State of Health (SoH)
  • Estimated Discharge Time Remaining

With Bluetooth battery monitor BatteryCheck100, you’ll always have enough power to keep your adventures on track.

For high current requirements and to monitor LiFePO4 batteries, use BatteryCheckPRO



(HU-BMPROCHECK)

  • Communicates with smartphones via Bluetooth
  • Free BatteryCheck100+PRO app via Google Play and iTunes App Store
  • Easy DIY installation – no mechanical expertise required
  • Works with batteries in parallel (7Ah-800Ah battery bank)
  • Internal shunt capacity – 100A peak, 80A continuous
  • Compatible with any deep cycle 12V lead acid, AGM and gel battery

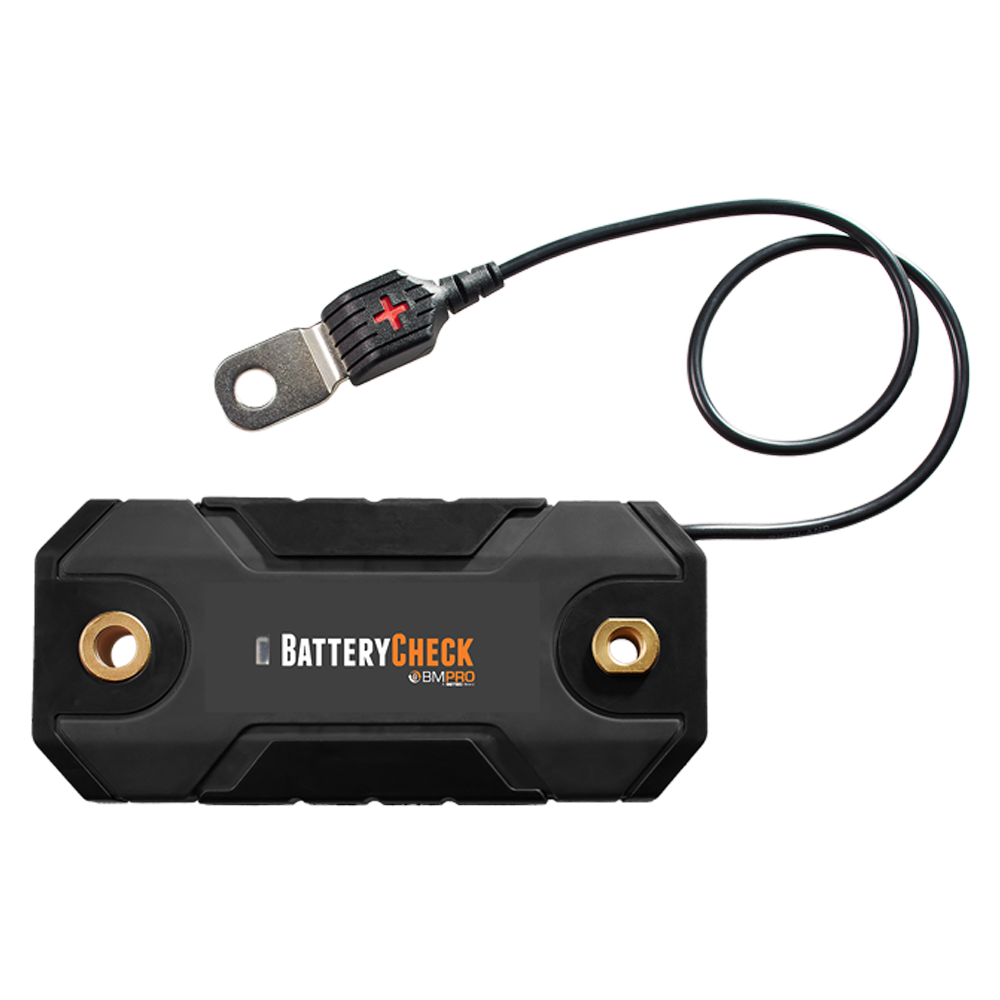

BatteryCheck 100

Input Voltage Range 8V to 16V
Voltage Measurement Resolution <20mV
Continuous Current Rating 80A
Current Measurement Range 100A
Current Measurement Resolution <20mA
Overload Protection (100ms w/out damage) 300A
Monitored Battery Capacity 7Ah to 800Ah
Temperature Measurement Range -20 °C to 70 °C (at Battery Terminal)
Temperature Measurement Resolution 1 °C
Dimensions 140mm x 65mm x 18.6mm
Weight 520g

SKU HU-BMPROCHECK
Brand BMPRO
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.350m
Shipping Cubic 0.007000000m3
