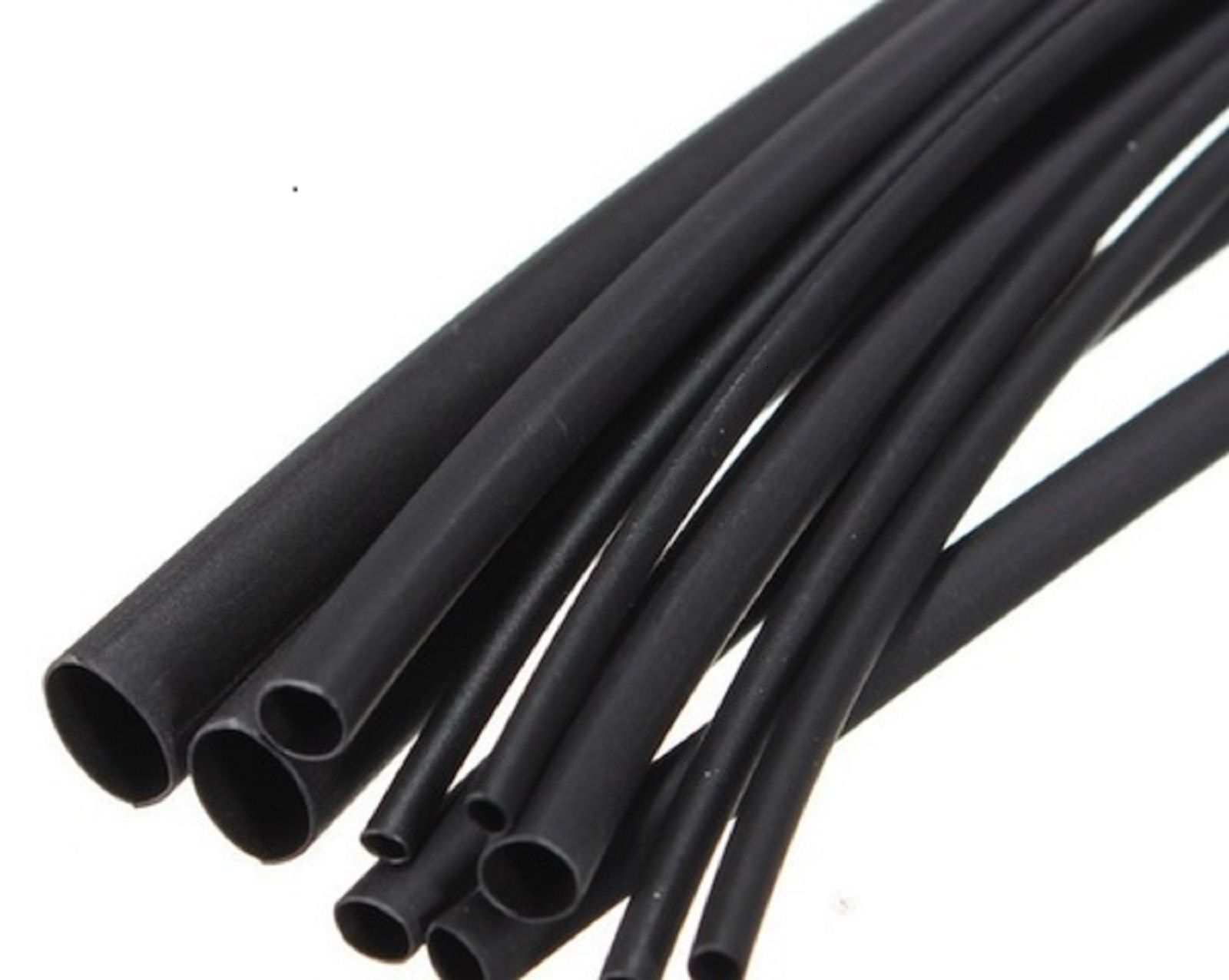

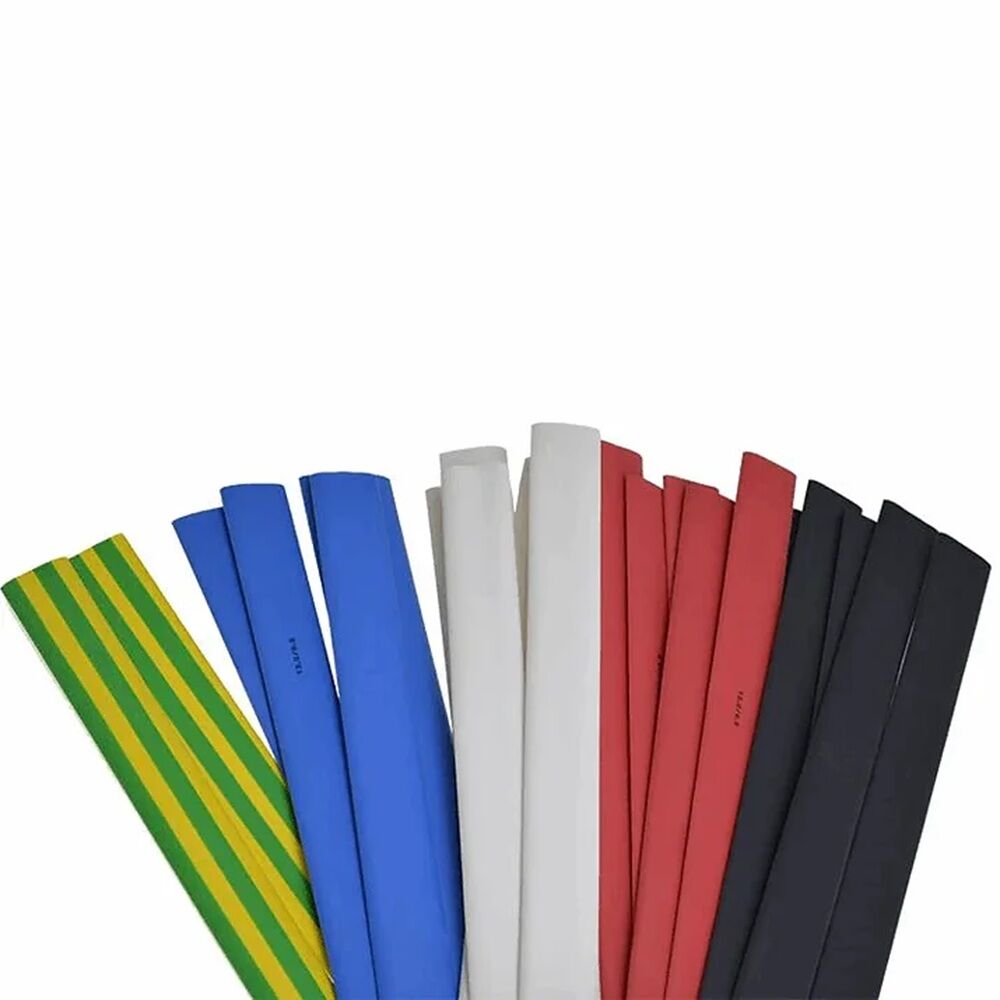

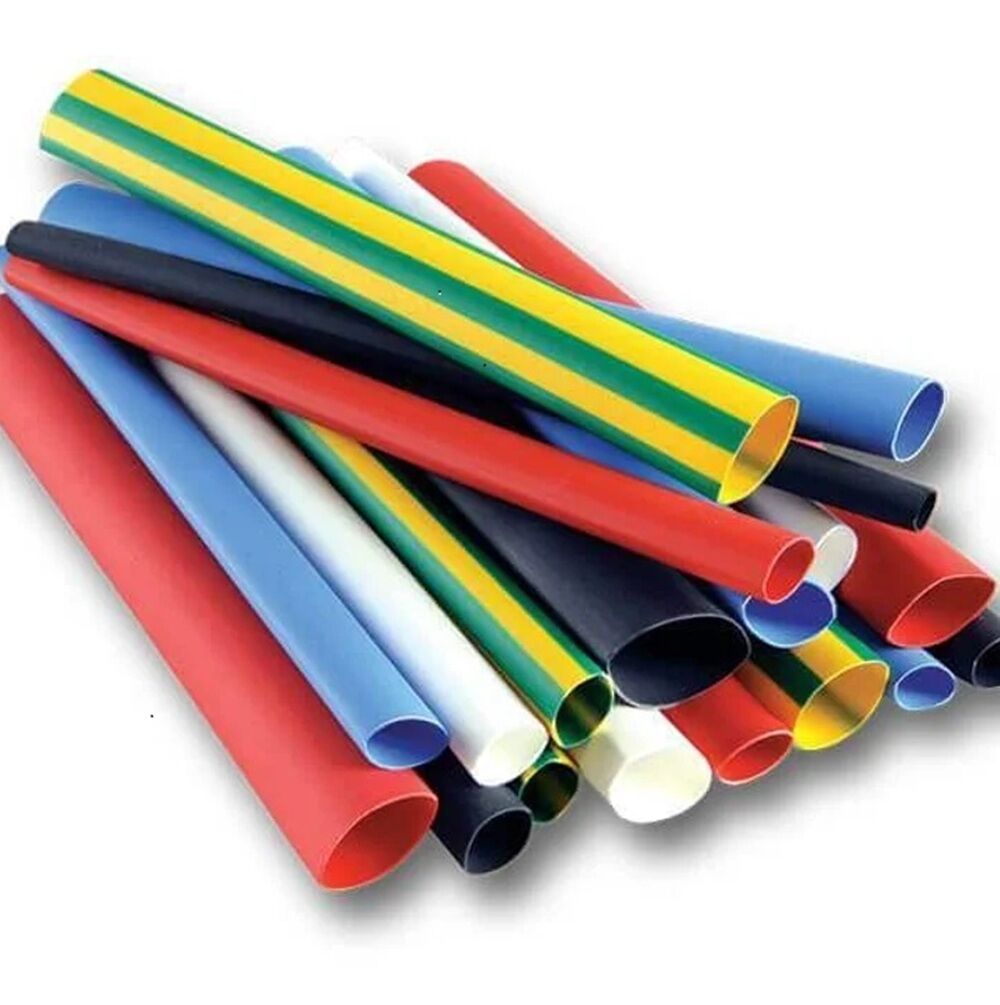

Colour Heat Shrink Tubing
14 Sizes Available - range 1.5,2.5,3,5,7,10.13.20,25,38,50,80,100,120 (mm)
Each Size is cut to 1.2m in length
PRICE is for 2.4 Metres
Minimum order of 2.4 meters any size  ( 2 x 1.2m= 2.4m)

NOTE1: 40mm tubing listed is actual 38mm, Also small order are shipped as letter postage and do not have tracking numbers. Each tube has the mm marking on them which can be removed.
NOTE2: Small QTY purchases are posted via aus post letter to keep the cost down, posting via this method could take 2-6 business days depending on your location so conside this delay as ebay policy doesnt take this into consideration in their calculation on est delivery times.

Non flame retardant,flexible,low smoke,halogen free single wall heat shrink tubing is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals in electrical engineering.

The heat shrink I have for sale is manufacture by a very well established company in China and has been operating in the electrical industry since 1998. The product is manufactured and complies with RoHS (Restriction of Hazardous Substances) standards.

For bulk quantities available on request

If you need Cable Ties and or Silicone Self Fusing Tape please visit my store


Size Dimension before
shrinking (mm)
Dimension After
shrinking (mm)
Length
Per
Piece
mm
Quantity Total Length
meter
Internal
diameter
Wall
thickness
Max Internal
diameter
Wall
thickness
1.5/0.5 2.0 ± 0.3 0.18 ± 0.05 0.85 0.32 ± 0.1 1.2 2 1.2
2.0/1.0 2.5 ± 0.3 0.18 ± 0.05 ≤0.10 0.35 ± 0.1 1.2 2 1.2
2.5/1.25 3.0 ± 0.3 0.18 ± 0.05 ≤1.3 0.38 ± 0.1 1.2 2 1.2
3.0/1.5 3.5 ± 0.4 0.18 ± 0.05 ≤1.5 0.40 ± 0.1 1.2 2 1.2
5.0/2.5 5.5 ± 0.4 0.25 ± 0.05 ≤2.5 0.55 ± 0.1 1.2 2 1.2
7.0/3.5 7.5 ± 0.4 0.25 ± 0.05 ≤3.5 0.55 ± 0.1 1.2 2 1.2
10.0/5.0 10.0 ± 0.5 0.30 ± 0.08 ≤5.0 0.60 ± 0.1 1.2 2 1.2
13.0/6.5 13.5 ± 0.5 0.35 ± 0.08 ≤6.5 0.65 ± 0.1 1.2 2 1.2
20.0/10.0 22.0 ± 0.7 0.40 ± 0.15 ≤10.0 0.80 ± 0.15 1.2 2 1.2
25.0/12.5 26.0 ± 0.7 0.55 ± 0.15 ≤12.5 0.90 ± 0.15 1.2 2 1.2
38.0/19.0 41.5 ± 0.7 0.55 ± 0.15 ≤20.0 1.0 ± 0.15 1.2 2 1.2
50.0/25.5 51.0 ± 0.7 0.55 ± 0.15 ≤25.0 1.0 ± 0.15 1.2 2 1.2
80.0/40.0 ≥80 0.70 ± 0.15 ≤46.0 1.46 ± 0.20 1.2 2 1.2
100.0/50.0 ≥100 0.70 ± 0.20 ≤51.0 1.46 ± 0.20 1.2 2 1.2
120.0/60.0 ≥120 0.70 ± 0.20 ≤61.0 1.56 ± 0.20 1.2 2 1.2

(SD-HS)

SKU SD-HS
Brand Road N Beyond
Shipping Weight 0.0020kg
Shipping Width 0.150m
Shipping Height 0.016m
Shipping Length 0.200m
Shipping Cubic 0.000480000m3
Unit Of Measure ea
