Item for Sale is a 10 Kit Plug and Socket 4 Pin system

Genuine Deutsch Plugs and Connectors

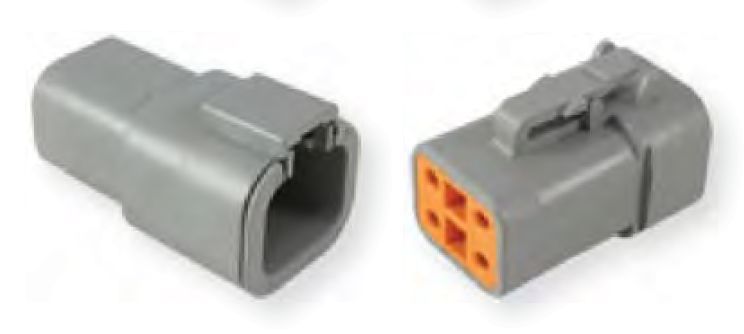

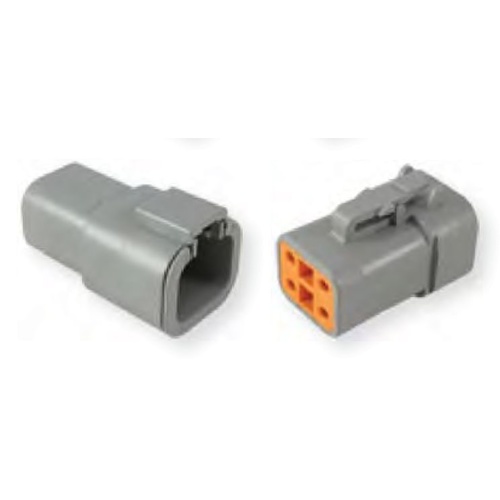

DT06-4S Socket  x 10
DT04-4P Plug    x 10

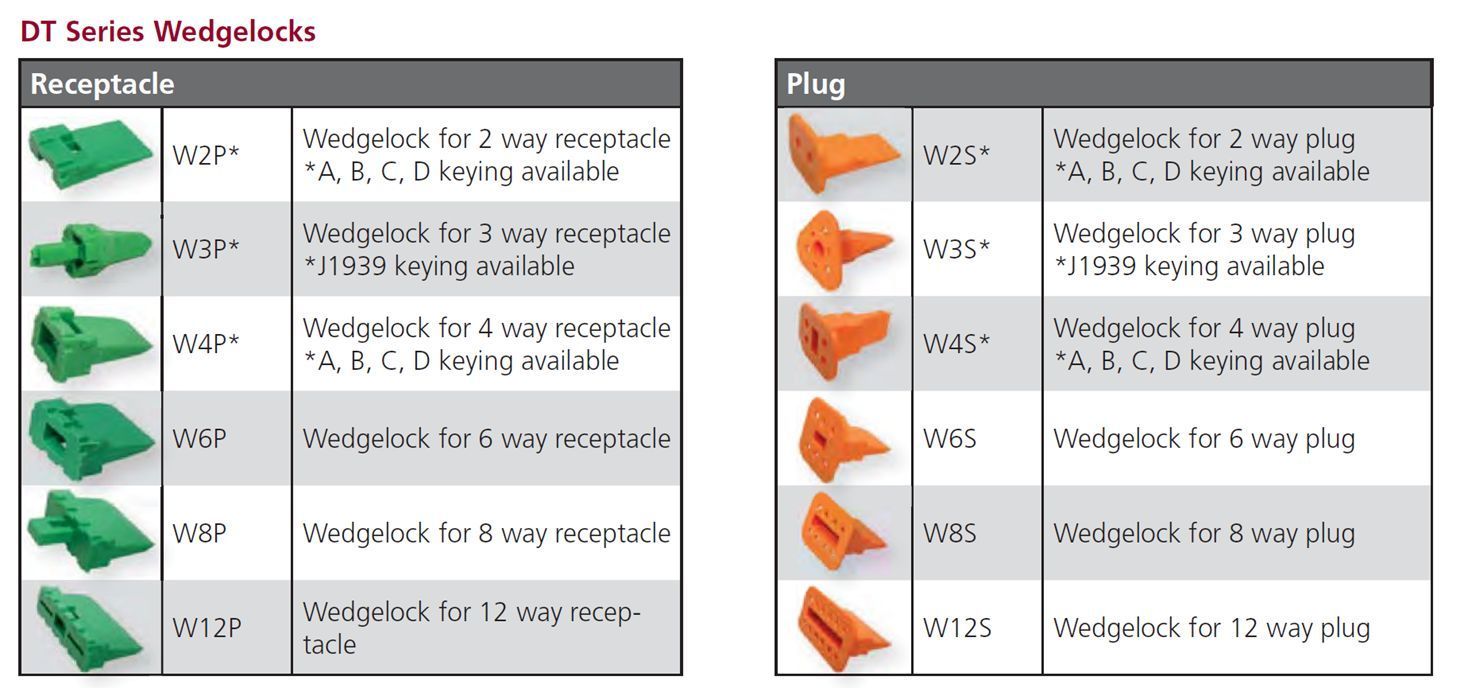

W4S Wedge       x 10
W4P Wedge       x 10
0460-215-16141  x 40
0462-209-16141  x 40

Contact Specs

Size  16
Wire Size AWG (mm2) 14/2.0
Max Amp Rating 13amp

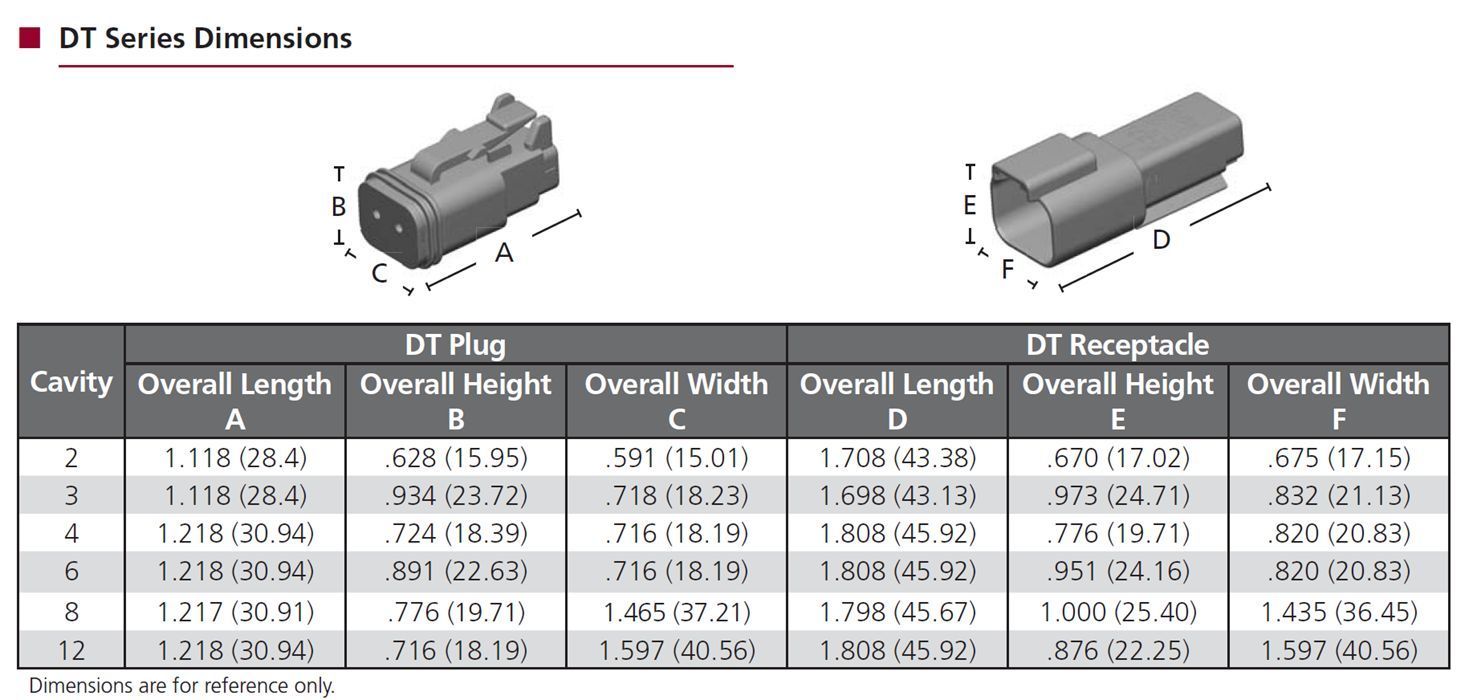

DT Series
Key Features:
• Accepts contact size 16 (13 amps)
• 14-20 AWG

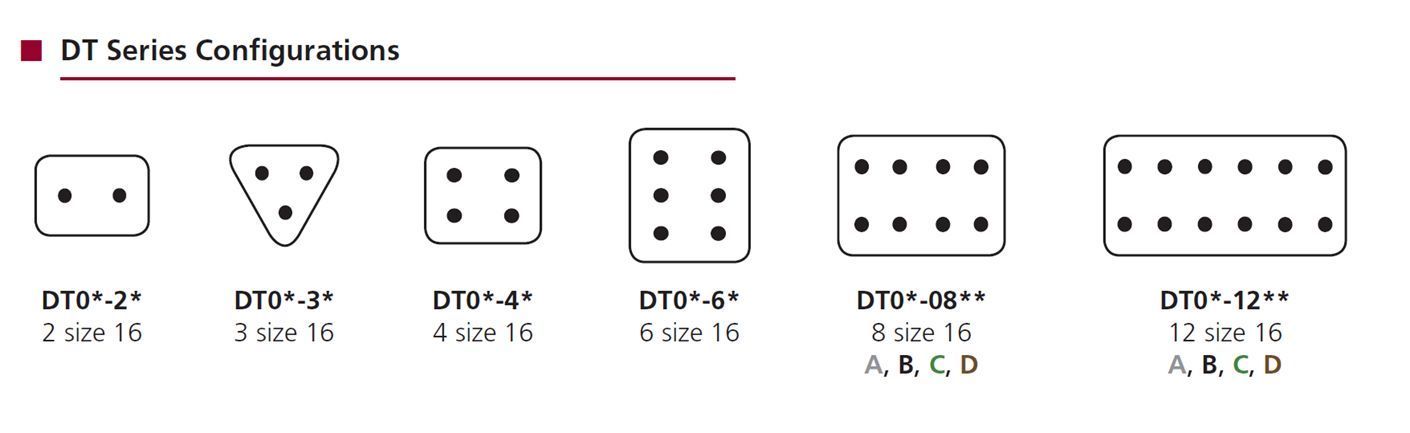

• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, fl ange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks assure contact alignment and
retention

Deutsch serve the industrial and heavy duty markets with a wide variety of electrical connectors. Deutsch is a key player in building connector systems and components for high performance machinery such
as off-road equipment, tractors and agricultural machinery, the heavy duty truck market, and several types of recreational equipment such as boats, motorcycles, and RVs.

(DT-4-10-Kit)

SKU DT-4-10-Kit
Brand Deutsch
Shipping Weight 650.0000kg
Shipping Width 0.220m
Shipping Height 0.080m
Shipping Length 0.220m
Unit Of Measure ea
