Item for Sale is a 10 Kit Plug and Socket 3 Pin system

Genuine Deutsch Plugs and Connectors

DT06-3S Socket  x 10
DT04-3P Plug    x 10

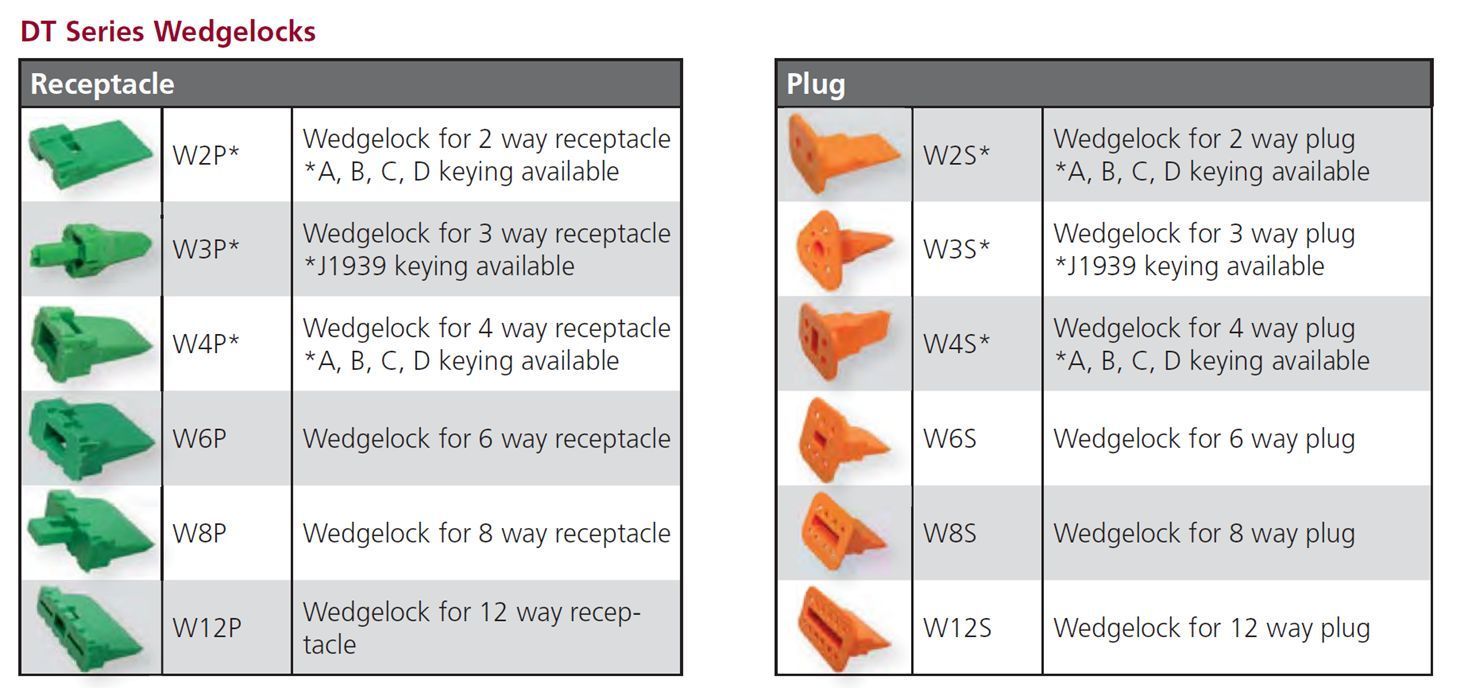

W3S Wedge       x 10
W3P Wedge       x 10
0460-215-16141  x 30
0462-209-16141  x 30

Contact Specs

Size  16
Wire Size AWG (mm2) 14/2.0
Max Amp Rating 13amp

DT Series
Key Features:
• Accepts contact size 16 (13 amps)
• 14-20 AWG

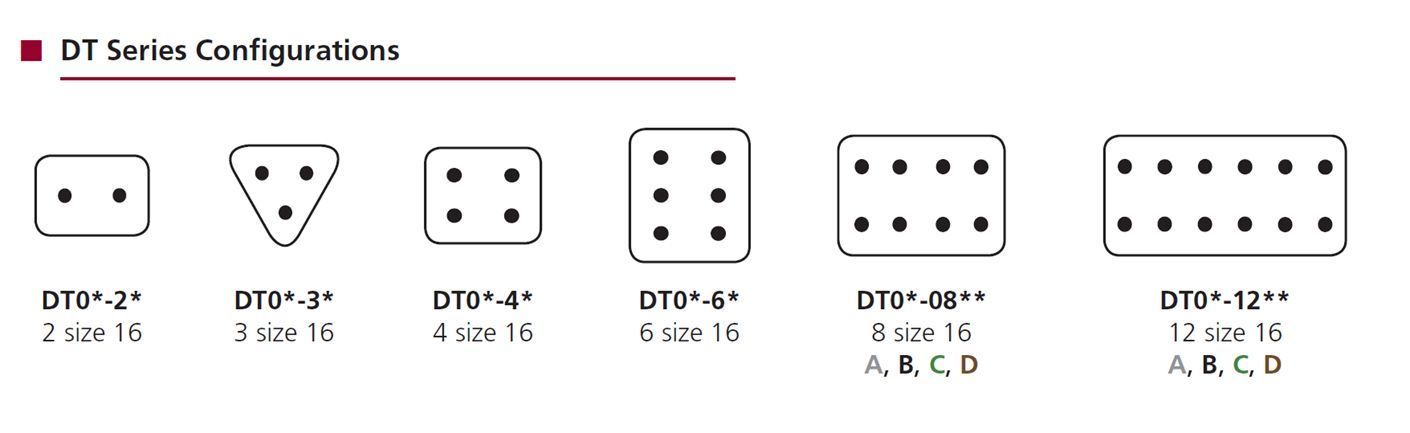

• 2, 3, 4, 6, 8, and 12 cavity arrangements
• In-line, fl ange, or PCB mount
• Rectangular, thermoplastic housing
• Integrated latch for mating
• Wedgelocks assure contact alignment and
retention

Deutsch serve the industrial and heavy duty markets with a wide variety of electrical connectors. Deutsch is a key player in building connector systems and components for high performance machinery such
as off-road equipment, tractors and agricultural machinery, the heavy duty truck market, and several types of recreational equipment such as boats, motorcycles, and RVs.

(N18)

SKU N18
Brand Deutsch
Shipping Weight 650.0000kg
Shipping Width 0.220m
Shipping Height 0.080m
Shipping Length 0.220m
Unit Of Measure ea
