Discover the Value of owning a AVE Tyre Pressure Monitoring System (TPMS) and SAVE Money.

Internal Sensor system (5)

System Can have a mixture of External and Internal to suit your application.

I have been testing this product and comparing it against other unit I have used in the past and this “Tyre Pressure Monitoring System” (TPMS) far exceeded my expectations.

Q: Why would you invest in a TPMS?

A: SAFETY comes to mind, but my reason is tyres on my 4 x 4 are $400 + each, I only need to save one Tyre from damage and the unit has paid for itself.

Other Advantage of Purchasing TPMS

1.    Provides Safety – Under inflated tyres cause instability, While over inflated increase the chances of instant blow outs
2.    Save on Fuel Consumption
3.    Consistent Tyre pressure
4.    Less Wear and Tear on Tyres
5.    Extended Life on Tyre Replacement
6.    Early Warning to prevent Damage to side wall when tyre is flat
7.    Early Warning on Slow Leaks
8.    Detects Temperature changes
9.    Monitors Car battery and Sensor voltages and Signal
10.  Use Common Tyre valves.

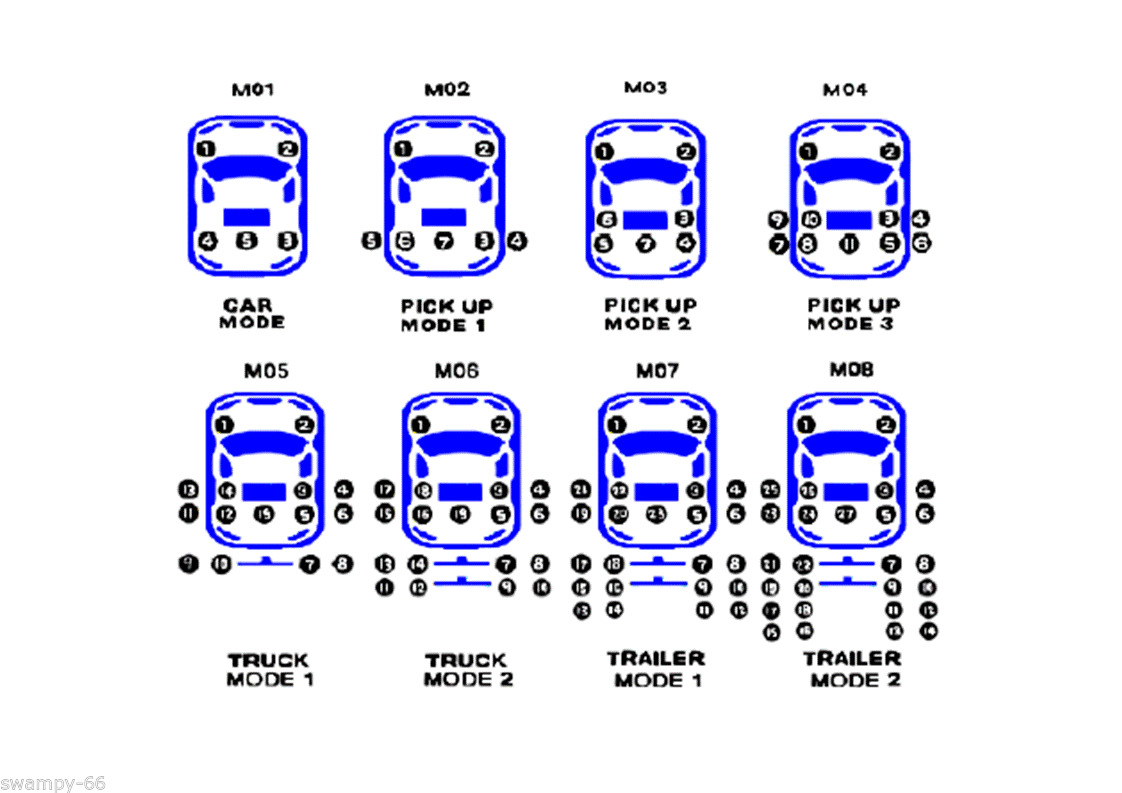

11.  Monitor up to 27 wheels.

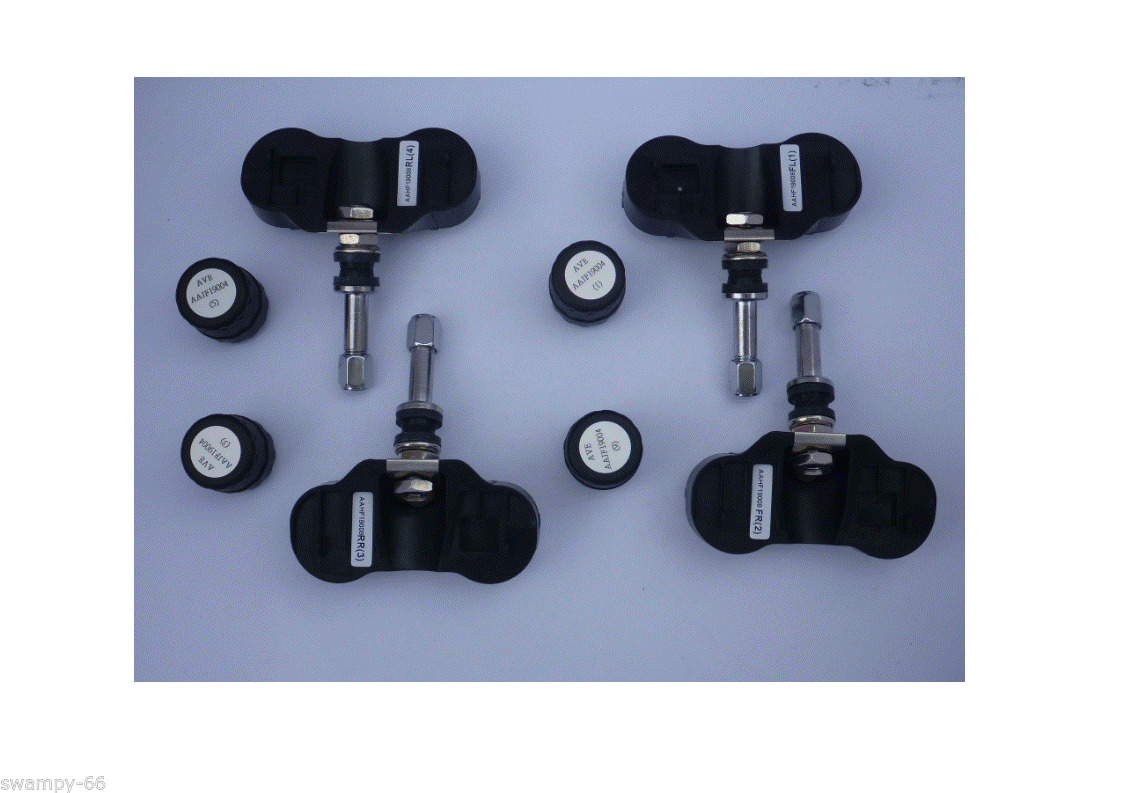

There will be a lot of debate whether to install Internal Vs External sensors. It will be a personal choice but I prefer the internal sensors as they are protected from damage when I’m out 4 wheeling and theft when parking at the shopping centres. I have included a photo in list to show the two types of sensors. (note this sale is for External sensors)

As mentioned above to ensure this device delivers on its promise I have tested this product in three vehicles:

Tested Vehicles: in 2014
1.    5 Sensor Internal unit install in my Toyota Prado running Cooper S/T tyres.
2.    5 Sensor Internal unit installed in a Mazda 6 running Dunlop Tyres.
3.    12 External Sensor unit installed on Toyota Landcrusier Sarah with Trooper caravan

Testimonial from third test vehicle.

Hi Ray,




I thought I would send you a report so to speak on the tyre pressure monitoring system I got off you in May this year before we went away.

To date we have traveled around 11,500 kms through central, western and eastern Australia at least half of this on dirt roads and over some very testing conditions I can assure you.

The greatest benefit with most of this type of preventative gear is you don’t realize how good they are until you have to use them, this goes for the likes of recovery gear, winches, snatch straps, jacks and the like.

We have only had one puncture to date and that I can tell you was in the middle of nowhere. As I was driving the sensor alerted me immediately that the pressure started to drop and I was able to pull over and repair the tyre successfully with minimal damage to the tyre itself. I can’t even imagine how long it would have taken me to realize and the damage that would have been done without the monitoring system.

The other benefit has been their accuracy, twice I have used a gauge at a service station only to turn the ignition on and check the pressures to see that they we were once all different and another time 10psi over inflated, both times the garage gauges were faulty, again had it not been for the system I would have been none the wiser.

I will be recommending these to all my friends on my return.

By all means please use this testament if you wish.

Best regards,


The item for Sale is a 5 Internal CAR sensors system. (please let me know before sale if you need more than 5 sensors or truck sensors as the price will vary)


Optional Accessories
Remote Control - Easier to adjust sensor location ie Spare is now in use

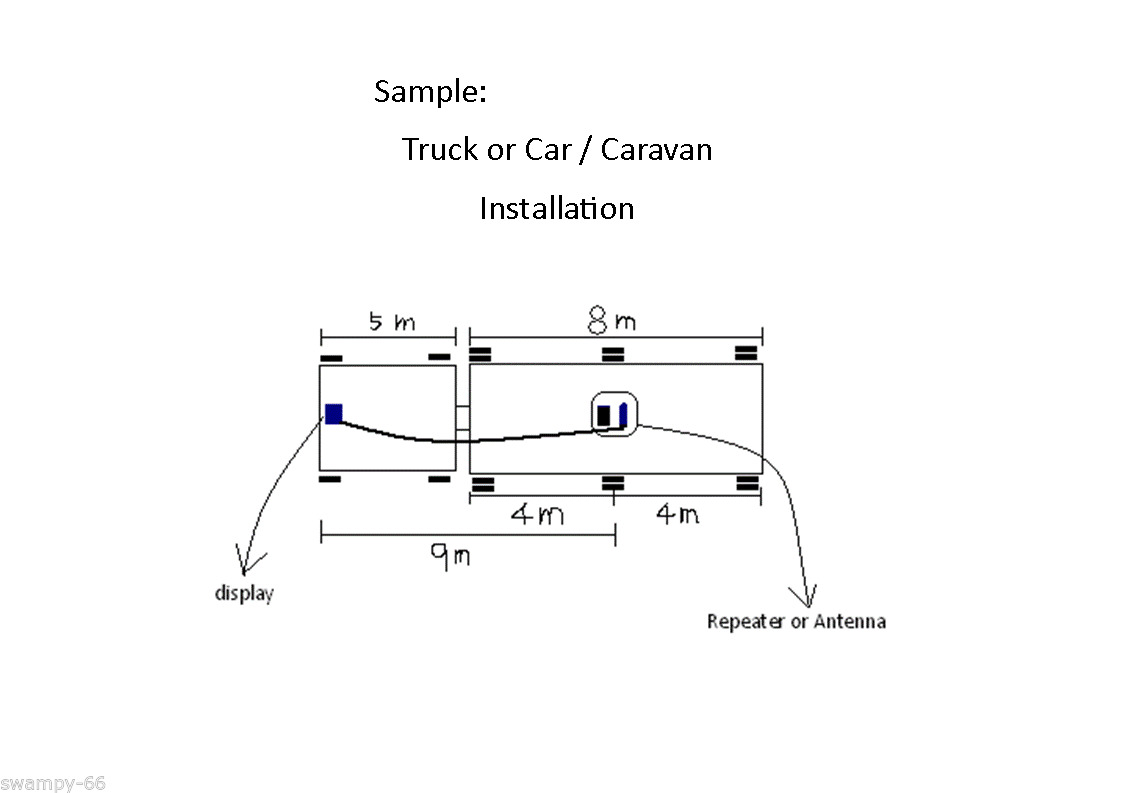

6 M cable for extending RF signal to trailer if required
Extra Sensors to increase Tyre monitoring (up to 27) (internal or external)

If these accessories need to be added please make contact prior to sale and I can arrange special pricing including combined shipping. I have other listing which have the external sensors.



Sensors/Transmitter Specifications                                                                           Receiver Specification

Battery life                         Estimated 5 to 7 years                                                        Operating Voltage              9V to 18V
                                           (under normal operating condition)
Battery voltage                  3 V                                                                                      Operating Temperature    -20c to 85c

Storage Temperature        -55c to 125c                                                                         Monitored Temperature    -40c to 100c

Operating Temperature    -40c to 125c

Temperature Resolution    ±3c

Pressure range                   700kPa (Car ), 1400kPa (Truck)

Pressure Resolution           2.66kPa (Car), 5.5kPa (Truck)

Operating Humidity          100%

Operating Frequency        434 MHz

What do I receive?

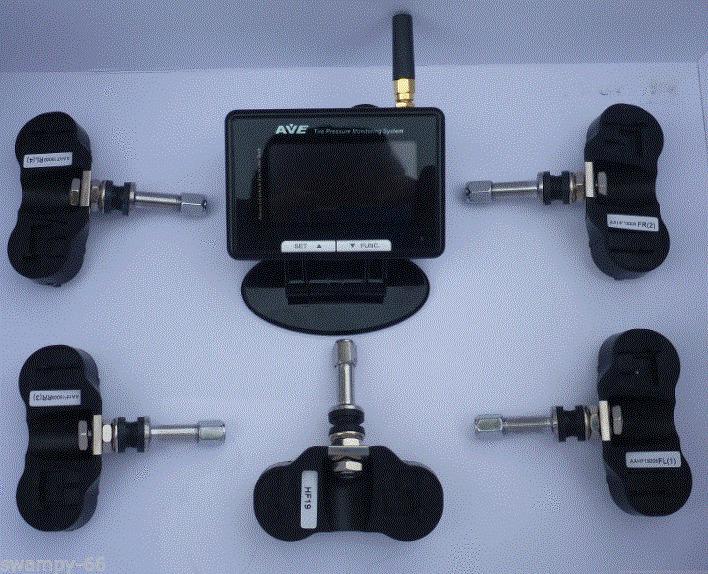

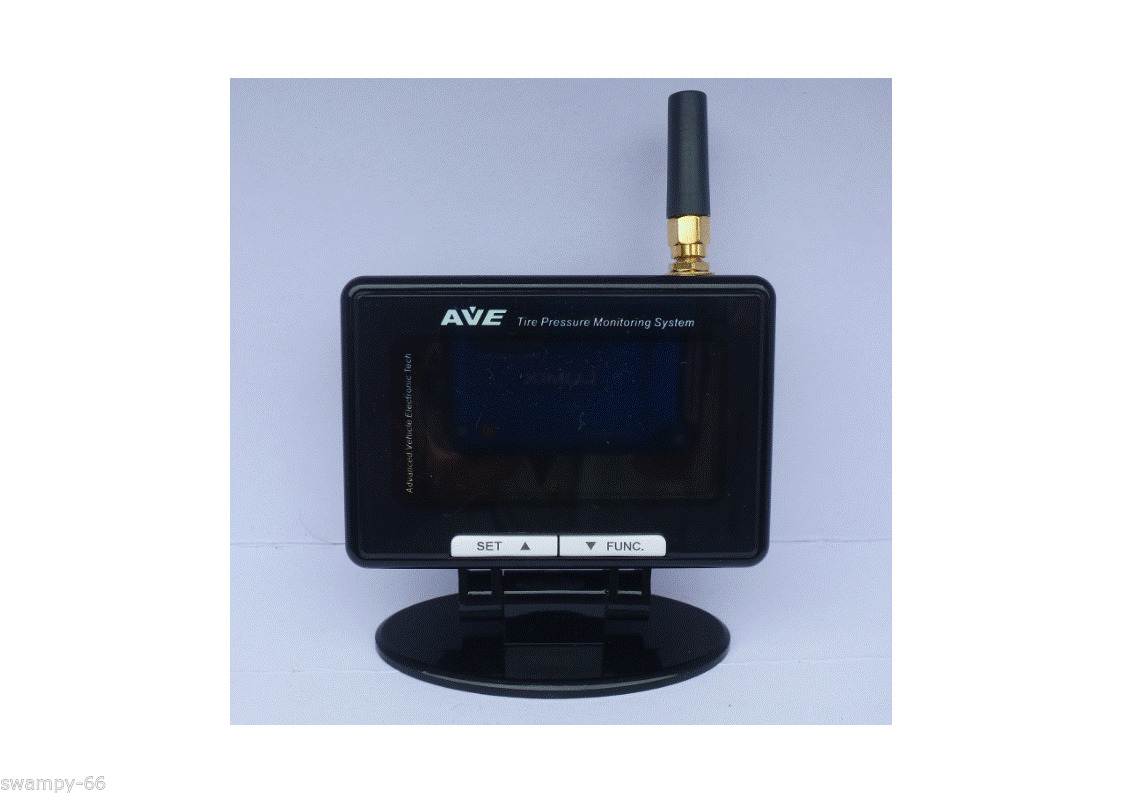

•    1 x Display Monitor + Mini Antenna
•    5 x Internal Sensors (CAR sensors )
•    Power Cord with Cigarette Adaptor
•    Base Adhesive
•    2 x Air Conditioner vent clips
•    User Manual
•    Warranty Card

Brand AVE
Shipping Weight 0.7200kg
Shipping Width 0.220m
Shipping Height 0.080m
Shipping Length 0.220m
Shipping Cubic 0.003872000m3
Unit Of Measure ea

Tyre Pressure Monitoring System

By: on 1 June 2024

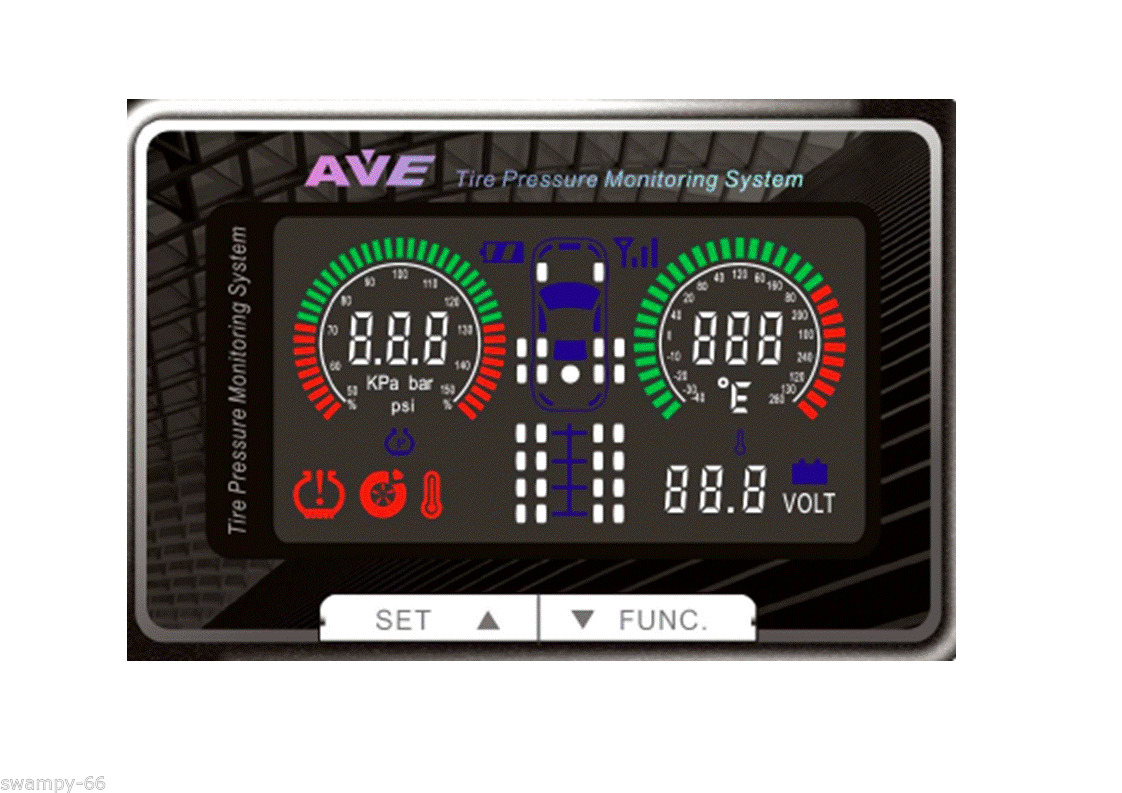

I’ve been using this TPMS for 6 months. The screen is clearly readable and in colour and the tyre pressure is accurate and warns with an audible beep and flashing display if pressure or temperature exceed thresholds. A few months ago on a sweltering summer day towing my caravan up Bulli Pass it reported one rear tyre was very hot so I was able to stop before a blowout. My unit is mounted on the dash with adhesive double sided tape and plugs into a 12v cig lighter. It’s a professional unit providing reassurance and advance warning and is highly recommended.
